We SCAN anything in 3d

Service providers to property owners, industries of all specialisations, architects, heritage councils, scientists, forensic and arbitration practitioners.

APPLIED DESIGN STRATEGIES

see the world through a different lens

We use 3d laser scanning technology to create point cloud surveys.
The data converts into high resolution images, walk throughs, accurate and measurable records.
Seamless conversion into most CAD systems. Quick and cost effective.

AS-BUILT DOCUMENTATION

Accurate, comprehensive, fast 3d capture of building information. We convert the data to plans sections and elevations if required. Quick and cost effective.

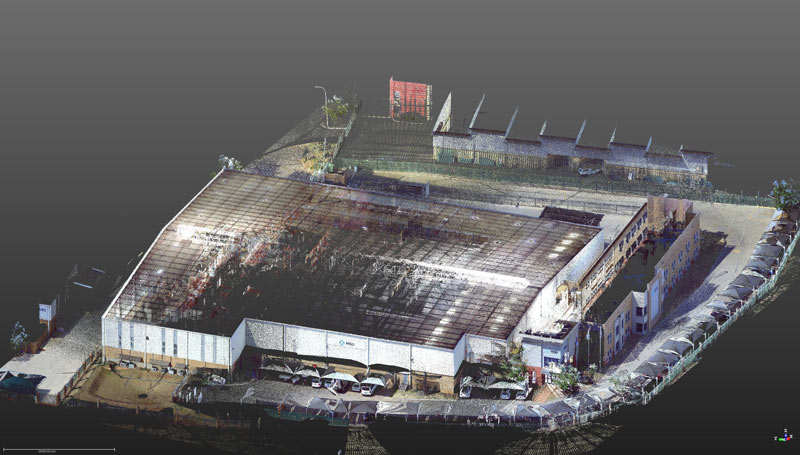

INDUSTRIAL PROPERTY JHB:
a warehouse is scanned to re-assemble missing documentation. 2D plans sections and elevations created from 3d point cloud, which also provides 3d record of built condition

BEFORE & AFTER COMMERCIAL RECORDS

Essential for landlords and tenant lease agreements, absolute record of finishes and quality of handover space.

INDUSTRIAL PROPERTY JHB:
a warehouse interior is scanned to photographic quality to record current condition on new tenant occupation. 2D plans sections and elevations created from 3D point cloud

HISTORIC RECORDS: HERITAGE

Visual record and 3d experience of heritage buildings for all heritage purposes

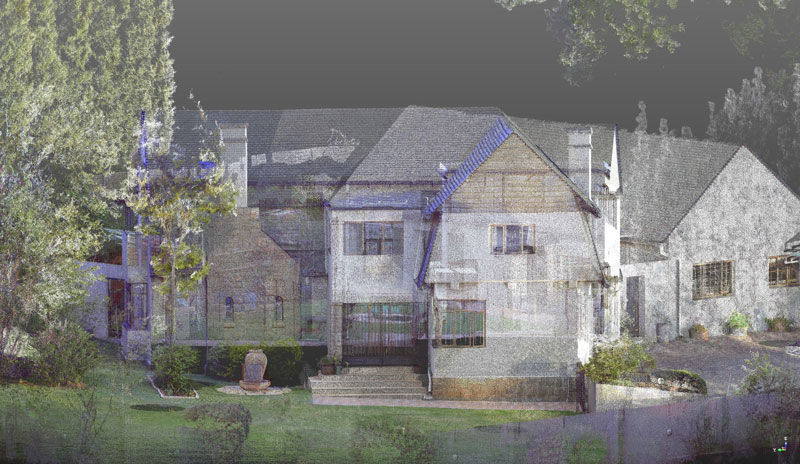

SAXONWOLD PROPERTY JHB:
a heritage house is scanned to assess possible renovations and create a permanent 3d record of the original

HISTORIC RECORDS: ANCIENT BUILDINGS

Assisted understanding of ancient buildings where no drawings exist

  1. 8 RUE PONTUS DE LA GARDIE – medieval village house scanned
  2. L’ABBEYE DE CAUNES MINERVOIS – this is the initial phase of a comprehensive record of the Romanesque abbey

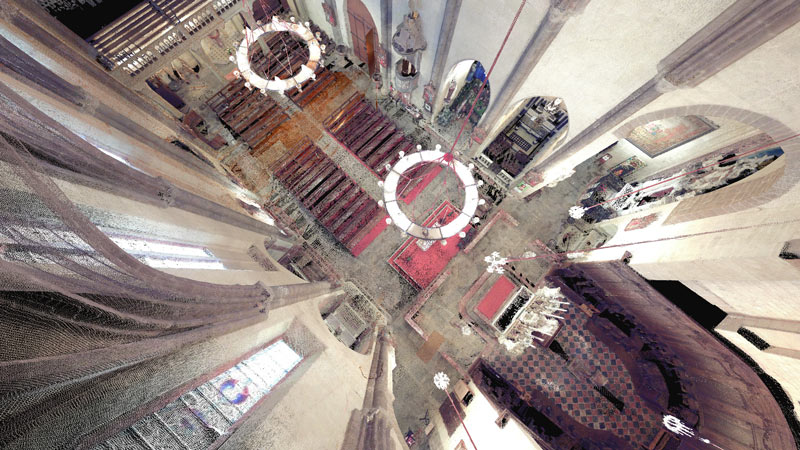

  3. NOTRE DAME DU CROS – 17c church outside Caunes Minervois

VISUALIZATION

New design work tested through combined renders of additions and changes and existing point cloud information.

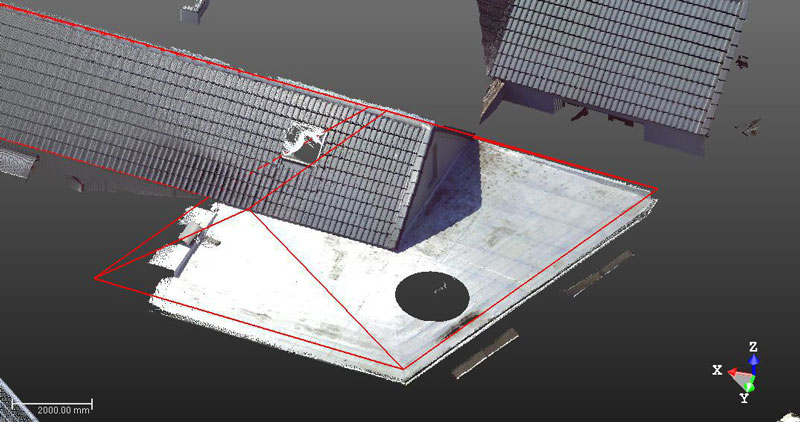

FLAT ROOF CONVERSION JHB:
A client wants to remove the flat roof and add a pitch.

LOGISTICS & FABRICATION

New equipment / parts recorded can be inserted into point cloud of existing warehouses / plant and tested for optimum placement.

INDUSTRIAL PROPERTY JHB: a warehouse interior is scanned to review new logistics plan

CONSTRUCTION MEASUREMENT: PIT, EARTHWORKS

Accurate pre-calculation of the quantities of earth to be moved in excavation, or pit size and material to be supplied (eg slabs) is now possible

SUPPORT FOR BIM

Exact constantly updated spatial data imported into BIM software seamlessly.

ABOUT

Applied Design Technologies is 28 years old in various design based incarnations, covering extensive architectural, interior and product design experience before our move to the fabulously unlimited world of 3d scanning.



Justin Mueller
architect with focus on specialist industrial buildings, logistics and photography

Elizabeth Pienaar
architect with focus on interiors, space planning, design and historical buildings
